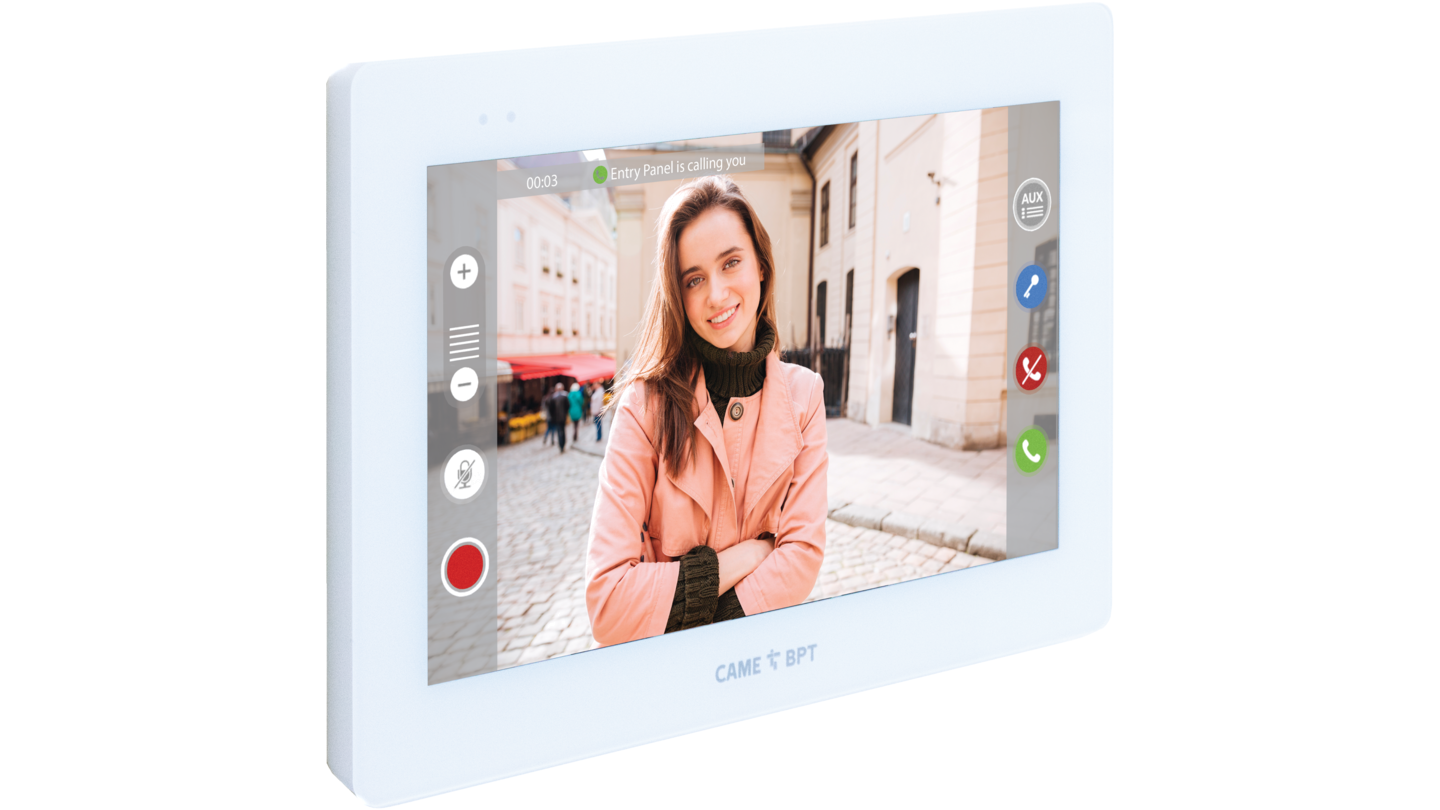

XTS: Video intercom with fully capacitive touch screen TFT display, available in 7″ and 5″ versions
Minimalist design and quality materials enhance elegance
Anti-reflective glass screen with OPTICAL BONDING technology ensures perfect viewing in all light conditions, with increased scratch and impact resistance
Features configurable quick commands, AUX for activation of auxiliary functions, and a “Panic” button for emergency calls to the porter
Version with integrated Wi-Fi allows system management and door opening from smartphone

Category: Video Door Phone Product ID: 5381

Description

MODELS	XTS 7IP WH WIFI	XTS 7IP BK WIFI	XTS 7IP WH WFBF	XTS 5IP WH	XTS 5IP BK	XTS 7 WH WIFI	XTS 7 BK WIFI	XTS 7 WH WFBF
Dimensions (mm)	185 x 129 x 24	185 x 129 x 24	185 x 129 x 24	138 x 98 x 24	138 x 98 x 24	185 x 129 x 24	185 x 129 x 24	185 x 129 x 24
Local power supply (V)	14 ÷ 18 DC	14 ÷ 18 DC	14 ÷ 18 DC	14 ÷ 18 DC	14 ÷ 18 DC	14 ÷ 18 DC	14 ÷ 18 DC	14 ÷ 18 DC
Local absorption (mA)	–	–	–	–	–	520	520	520
PoE power supply	IEEE 802.3af-PD	IEEE 802.3af-PD	IEEE 802.3af-PD	IEEE 802.3af-PD	IEEE 802.3af-PD	–	–	–
Consumption in stand-by mode (mA)	340	340	340	270	270	360	360	360
Max. absorption (mA)	420	420	420	330	330	–	–	–
Operating temperature (°C)	0 ÷ +40	0 ÷ +40	0 ÷ +40	0 ÷ +40	0 ÷ +40	0 ÷ +40	0 ÷ +40	0 ÷ +40
Protection rating (IP)	30	30	30	30	30	30	30	30
Video standard	H.264	H.264	H.264	H.264	H.264	PAL	PAL	PAL
Frequency (MHz)	2.412 – 2.472	2.412 – 2.472	2.412 – 2.472	–	–	2.412 – 2.472	2.412 – 2.472	2.412 – 2.472
Wireless Standard	IEEE 802.11b/g/n	IEEE 802.11b/g/n	IEEE 802.11b/g/n	–	–	IEEE 802.11b/g/n	IEEE 802.11b/g/n	IEEE 802.11b/g/n
Color	White	Black	White	White	Black	White	Black	White
