Description

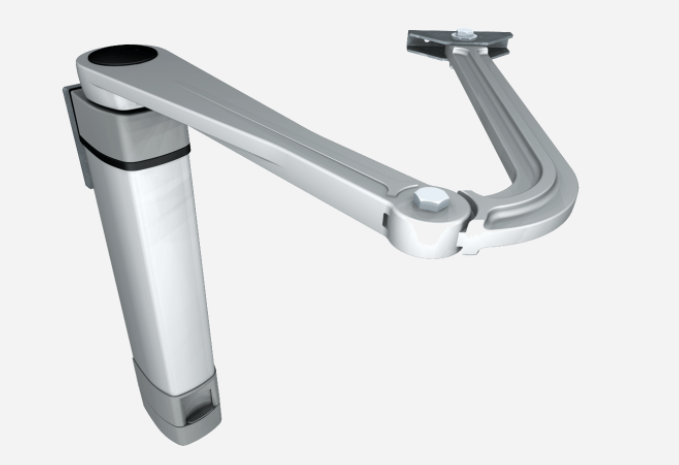

CAME STYLO is a reliable 24 V electromechanical operator designed for swing gates with leaves up to 1.8 m wide. It is the ideal solution when the motor-hinge center distance is too large to mount any other automation devices. Thanks to low voltage this motor is perfect for intensive use. This motor has an encoder.
C_STYLO / 2_M
STYLO / 2 Swing Gate Motor 24V – Kit M
-
Compositions
24 V -
Styles
1.8 m -
Properties
150 kg -
max
15 cm -
max
electromechanical -
D dimension
5 -
Drive type
48 W -
care
intensive -
Protection class
100 Nm -
Soft start / soft stop
– -
Opening time up to 90 °
adjustable -
max. opening angle
90 ° -
operating temperature
-20 – + 55 ° C -
Protection class
IP 54 -
Self-locking
Yes -
Limit switch for OPEN
no -
Limit switch for CLOSED
no -
Encoder
Yes -
Second line of light barriers
Yes -
Partial opening function
Yes -
Connection from the electric lock
Yes -
Amperometric obstacle detection
Yes -
Individual time setting
Yes -
Individual force adjustment
Yes -
Warning time of the flashing light
Yes -
Automatic closing
Yes -
Soft start / soft stop
Yes
