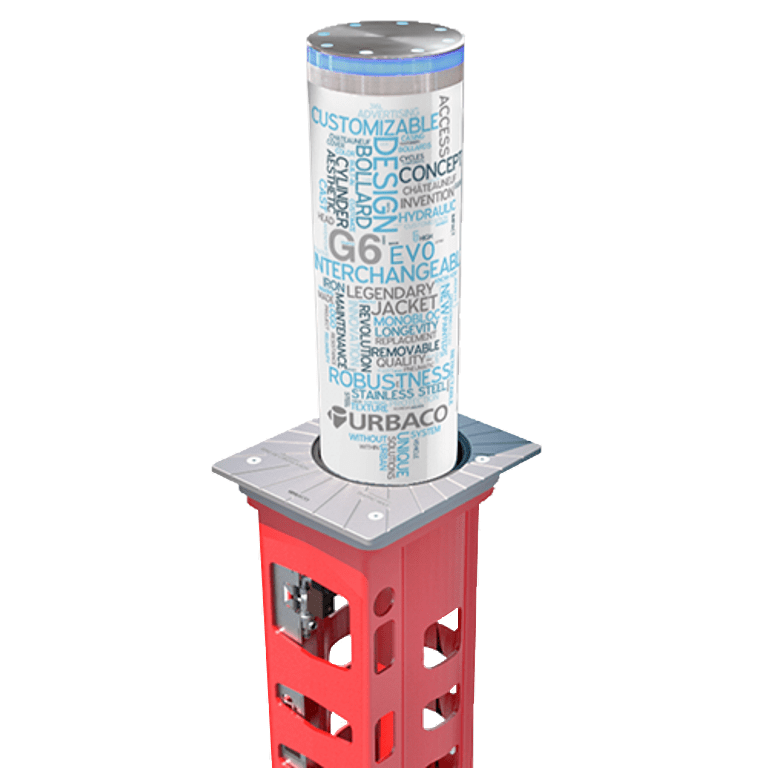

G6 EVO: AUTOMATIC

Description

Conception:                   Urbaco Monobloc® certificate : 3 elements of structure : casing, cover and bollard head each molded                                              one piece spheroidal cast iron material.
Use:                                Regular to intensive passages
Material:                         11mm average thick cast-iron material
Display device:             Class II reflective band(white)
Illuminated ring:            Leds (Red in Standard, White in Option)
Impact resistance:        Ø200 : Middle (1,2T at 50km/h); Ø250 : High (2,5T at 55km/h)
Reability:                        4.5 million of operations without any failure neither part replacement
Dimensions (mm):         Ø200 x H750  I  Ø250 x H550  I  Ø250 x H750
Standards:                      ISO EN 124 – E600 Class – Accepted vertical load: 60T per axle / In compliance with NFP98-310                                                    standard / In compliance with the French PMR decree
Design:                           CYLINDER
