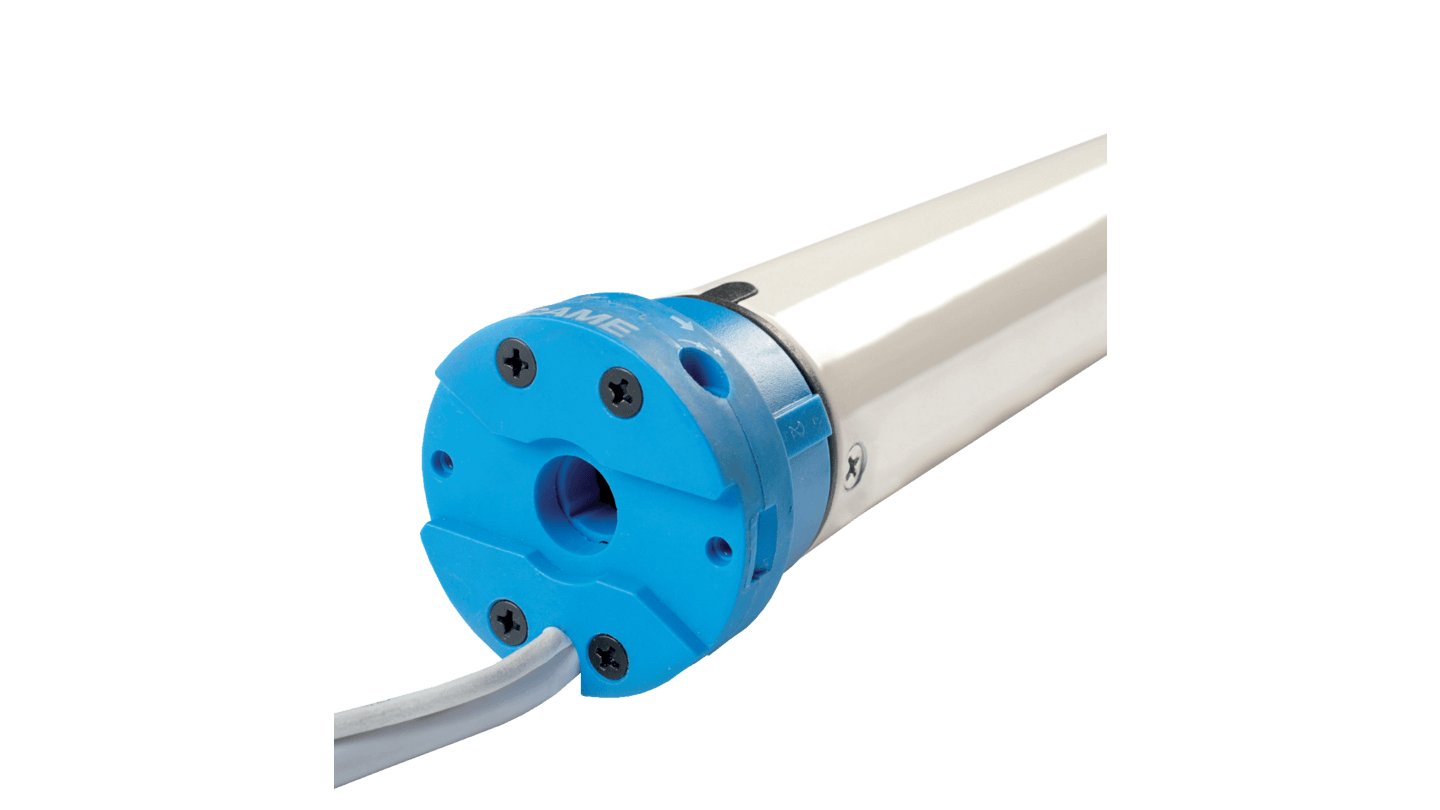

MONDRIAN R5

MONDRIAN R5

  • MONDRIAN R5 – Ø 45: Motorized tubular motor with a diameter of 45 mm
  • Operates on 230 V AC – 50 Hz power supply
  • Features a mechanical limit switch for precise control over positioning
  • Equipped with a 433.92 MHz radio receiver for enhanced functionality
  • Compatible with both 50 mm round and octagonal tubes
  • Manual mechanical limit-switch with screw-based progressive adjustment
  • Universal head design for easy application on any anchoring plate
Category: Product ID: 5502

Description

CODE 001Y5010A151MOR 001Y5010A261MOR 001Y5020A151MOR 001Y5030A151MOR 001Y5040A151MOR 001Y5050A121MOR
Torque (Nm) 10 MAX 10 MAX 20 30 40 50
Rpm speed (turns/min) 15 26 15 15 15 12
Hoisted weight (Kg)* 18 18 36 55 74 92
Limit switch revolutions (revolutions) 22 22 22 22 22 22
Duration of operation (min) 4 4 4 4 4 4
Protection rating (IP) 44 44 44 44 44 44
Absorption (A) 0,49 0,64 0,64 0,83 0,86 0,89
Power (W) 113 145 161 200 198 205
Length (mm) = L1 593 593 593 623 623 623
Weight (Kg) 2,17 2,79 2,34 2,6 2,73 2,89
Package dimensions (mm) 685 x 90 x 90 685 x 90 x 90 685 x 90 x 90 685 x 90 x 90 685 x 90 x 90 685 x 90 x 90
Weight of packed motor (Kg) 2,47 3,09 2,64 2,9 3,03
