MONDRIAN 6

MONDRIAN 6

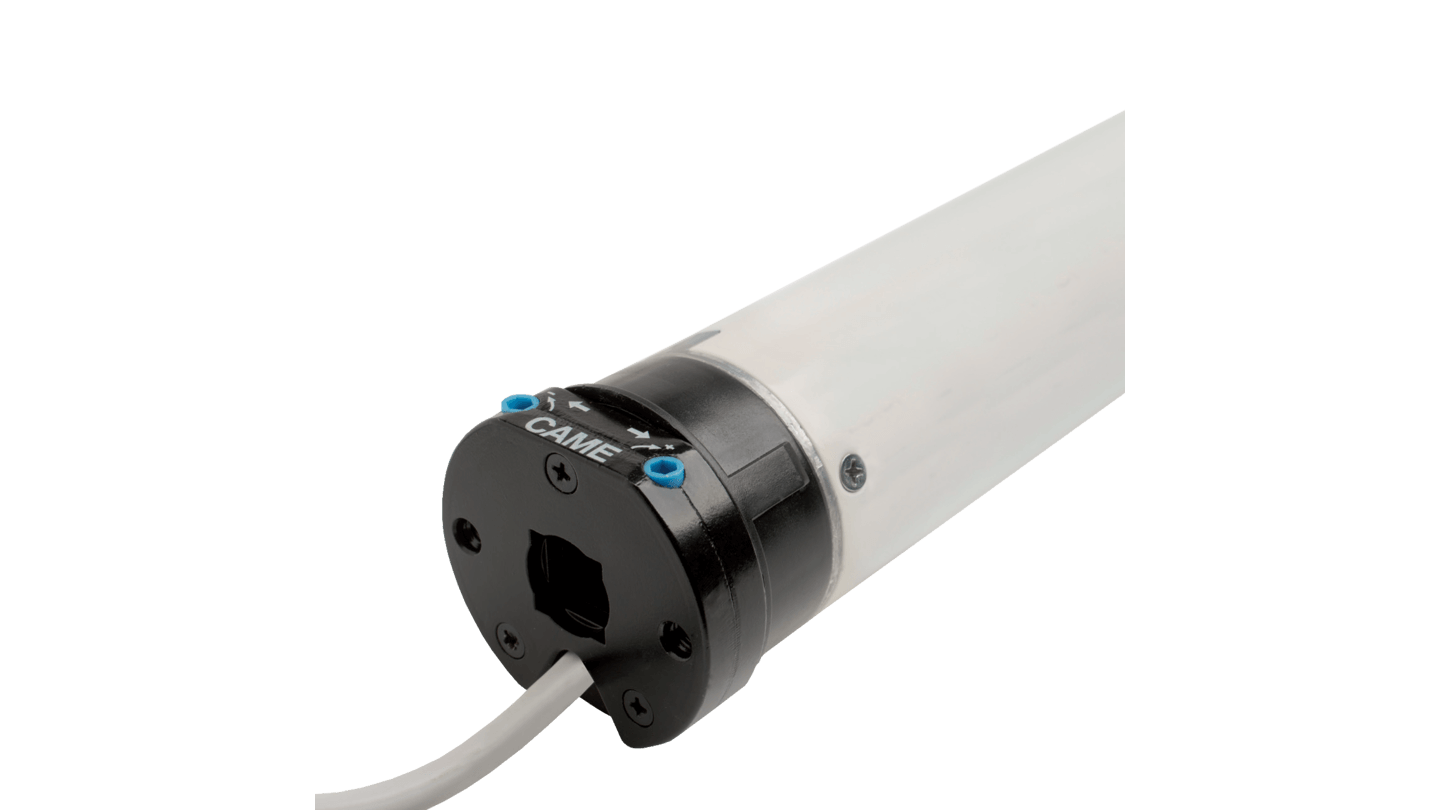

MONDRIAN 6 – Ø 55: Motorized tubular motor with a diameter of 55 mm
Operates on 230 V AC – 50 Hz power supply
Features mechanical limit switch for precise control over positioning
Optional outdoor receiver for added versatility
Compatible with 70 mm round or octagonal tubes
Manual mechanical limit-switch with screw-based progressive adjustment
Universal head design for easy application on any anchoring plate

Category: Blinds And Awnings Product ID: 5521

Description
Reviews (0)

Description

CODE	001Y6080A121MO	001Y6100A101MO	001Y6120A081MO
Torque (Nm)	80	001E002	120
Rpm speed (turns/min)	12	10 MAX	8
Hoisted weight (Kg)*	114	143	171
Limit switch revolutions (revolutions)	20	20	20
Duration of operation (min)	4	4	4
Protection rating (IP)	44	44	44
Absorption (A)	1,71	1,68	1,64
Power (W)	396	385	375
Length (mm) = L1	570	570	590
Weight (Kg)	4,8	4,8	5,25
Package dimensions (mm)	650 x 120 x 120	650 x 120 x 120	700 x 120 x 120
Weight of packed motor (Kg)	5,2	5,2	5,65
