MONDRIAN MR5

MONDRIAN MR5

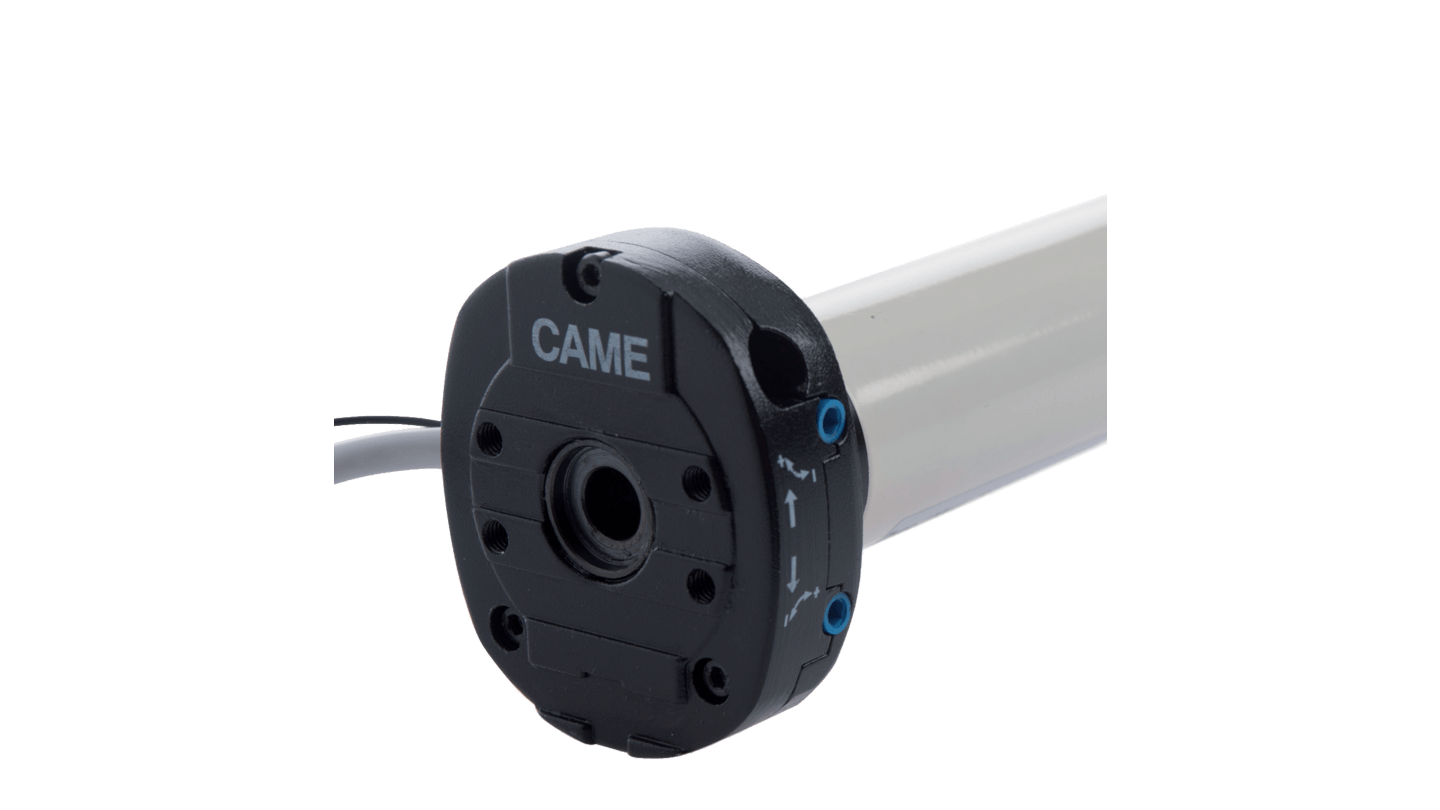

  • MONDRIAN MR5 – Ø 45: Motorized tubular motor with a diameter of 45 mm
  • Operates on 230 V AC – 50 Hz power supply
  • Features a mechanical limit switch for precise control over positioning
  • Built-in emergency maneuver for added safety and control
  • Equipped with a 433.92 MHz radio receiver for wireless communication
  • Compatible with both 50 mm round and octagonal tubes
  • Manual mechanical limit-switch with screw-based progressive adjustment
  • Emergency wand for manual activation in emergencies
  • Reduction ratio of 1:24 for optimized performance
Category: Product ID: 5500

Description

CODE 001Y5020A151MOMR 001Y5030A151MOMR 001Y5040A151MOMR 001Y5050A121MOMR
Torque (Nm) 20 30 40 50
Rpm speed (turns/min) 15 15 15 12
Hoisted weight (Kg)* 36 55 74 92
Limit switch revolutions (revolutions) 23 23 23 23
Duration of operation (min) 4 4 4 4
Protection rating (IP) 44 44 44 44
Absorption (A) 0,65 0,83 0,86 0,89
Power (W) 145 191 198 205
Length (mm) = L1 696 756 756 756
Weight (Kg) 2,75 3,2 3,5 3,5
Package dimensions (mm) 810 x 120 x 120 810 x 120 x 120 810 x 120 x 120 810 x 120 x 120
Weight of packed motor (Kg) 3,15 3,6 3,9 3,9
