MONDRIAN 5

MONDRIAN 5

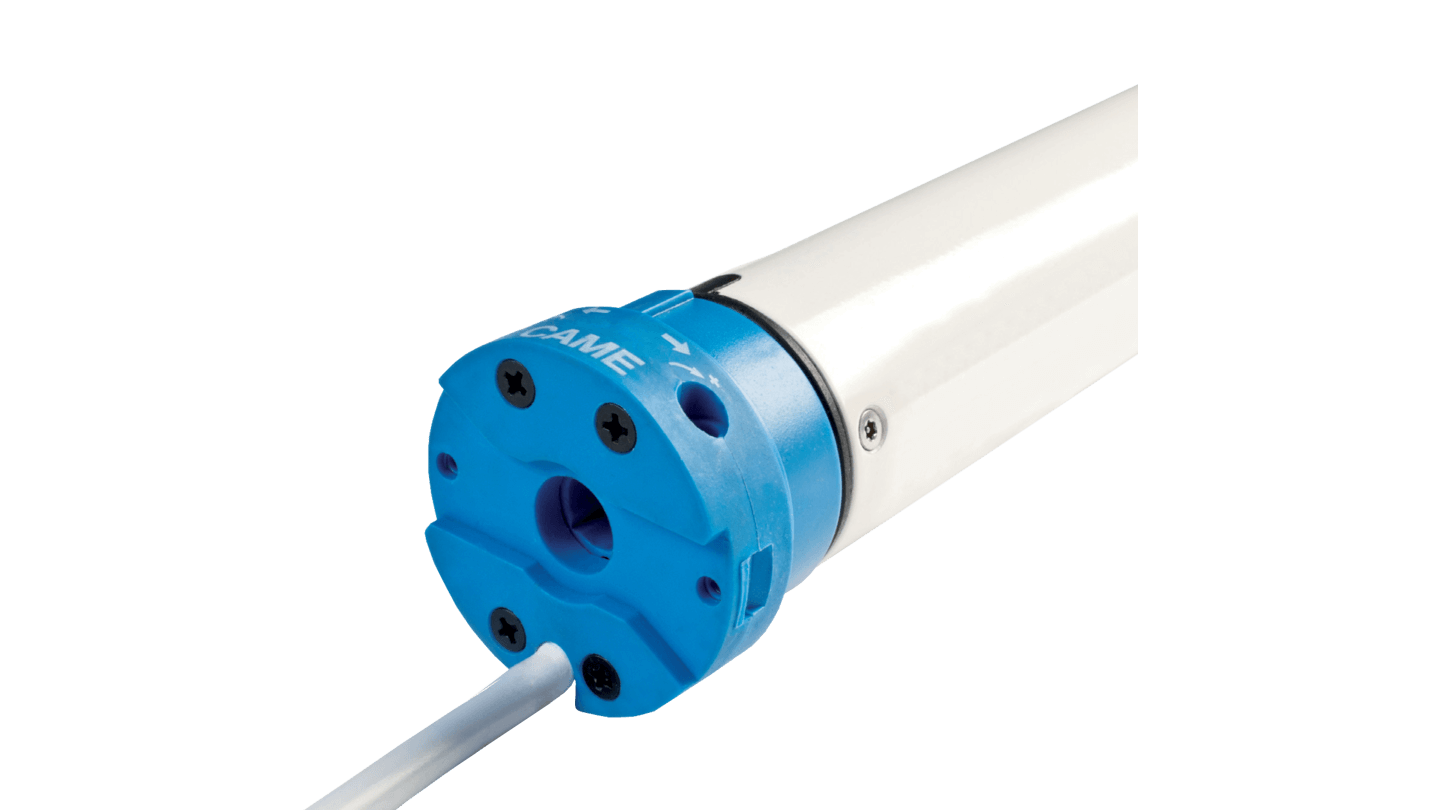

  • MONDRIAN 5 – Ø 45: Motorized awning with a diameter of 45 mm
  • Operates on 230 V AC – 50 Hz power supply
  • Equipped with a mechanical limit switch for precise control over opening and closing positions
  • Optional outdoor receiver available for enhanced functionality and control
Category: Product ID: 5488

Description

CODE 001Y5010A263MO 001Y5010A151MO 001Y5020A151MO 001Y5030A151MO 001Y5040A151MO 001Y5050A121MO
Torque (Nm) 10 MAX 10 MAX 20 30 40 50
Rpm speed (turns/min) 26 15 15 15 15 12
Hoisted weight (Kg)* 18 18 36 55 74 92
Limit switch revolutions (revolutions) 22 22 22 22 22 22
Duration of operation (min) 4 4 4 4 4 4
Protection rating (IP) 44 44 44 44 44 44
Absorption (A) 0,64 0,49 0,64 0,83 0,86 0,89
Power (W) 145 113 161 200 198 205
Length (mm) = L1 453 453 453 523 523 523
Weight (Kg) 2,5 1,88 2,05 2,31 2,44 2,6
Package dimensions (mm) 518 x 80 x 80 518 x 80 x 80 518 x 80 x 80 585 x 80 x 80 585 x 80 x 80 585 x 80 x 80
Weight of packed motor (Kg) 2,68 2,05 2,25 2,5 2,65 2,8
