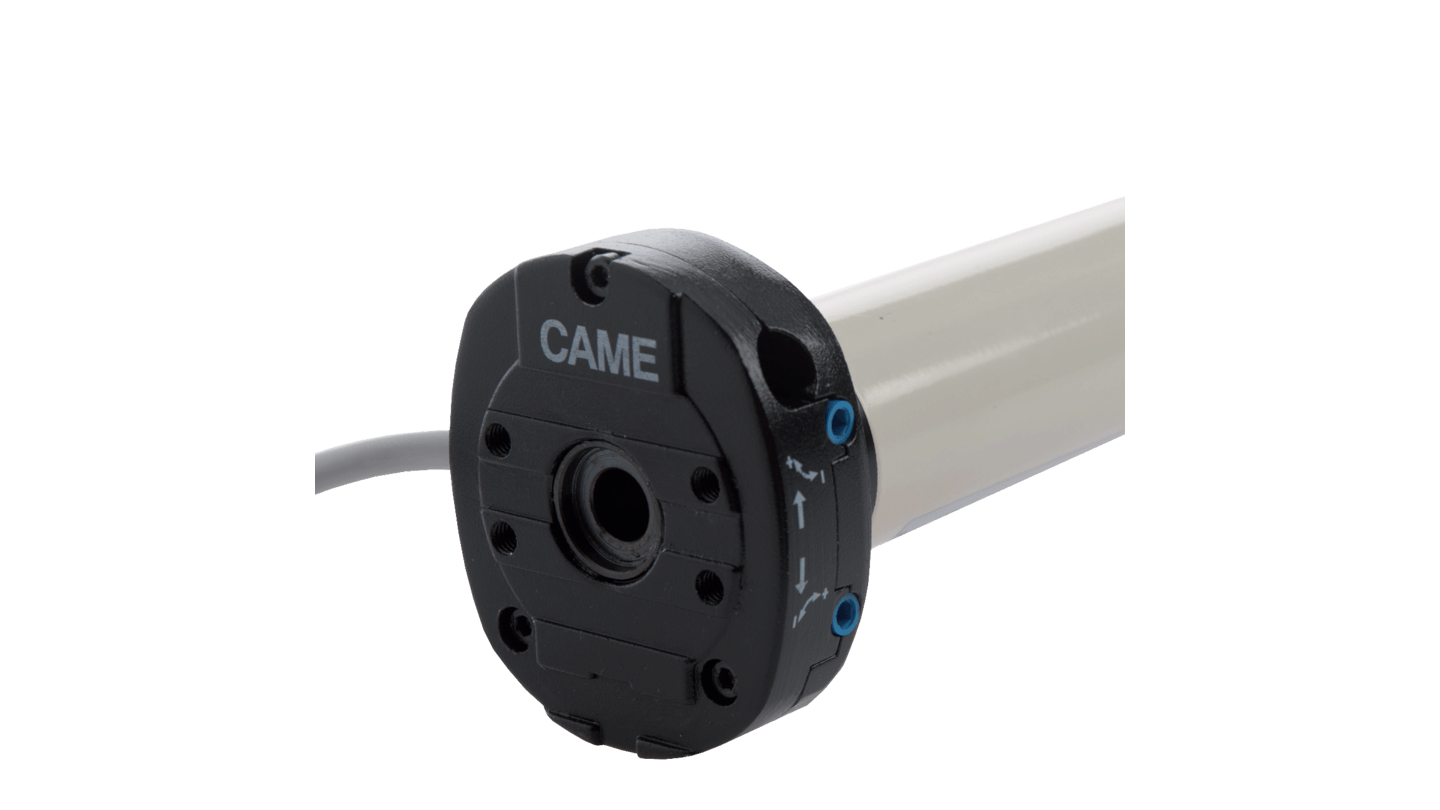

MONDRIAN M5

MONDRIAN M5

  • MONDRIAN M5 – Ø 45: Motorized awning with a diameter of 45 mm
  • Operates on 230 V AC – 50 Hz power supply
  • Features a mechanical limit switch for precise control over positioning
  • Built-in emergency maneuver for added safety and control
  • Compatible with both 50 mm round and octagonal tubes
  • Manual mechanical limit-switch with screw-based progressive adjustment
  • Emergency wand for manual activation in case of emergencies
  • Reduction ratio of 1:24 for optimized performance
Category: Product ID: 5492

Description

CODE 001Y5020A151MOM 001Y5030A151MOM 001Y5040A151MOM 001Y5050A121MOM
Torque (Nm) 20 30 40 50
Rpm speed (turns/min) 15 15 15 12
Hoisted weight (Kg)* 36 55 74 92
Limit switch revolutions (revolutions) 23 23 23 23
Duration of operation (min) 4 4 4 4
Protection rating (IP) 44 44 44 44
Absorption (A) 0,64 0,83 0,86 0,89
Power (W) 145 191 198 205
Length (mm) = L1 526 586 586 586
Weight (Kg) 2,4 2,85 3,16 3,32
Package dimensions (mm) 650 x 120 x 120 650 x 120 x 120 650 x 120 x 120 650 x 120 x 120
Weight of packed motor (Kg) 2,8 3,2 3,46 3,62
