KLIMT SH5

KLIMT SH5

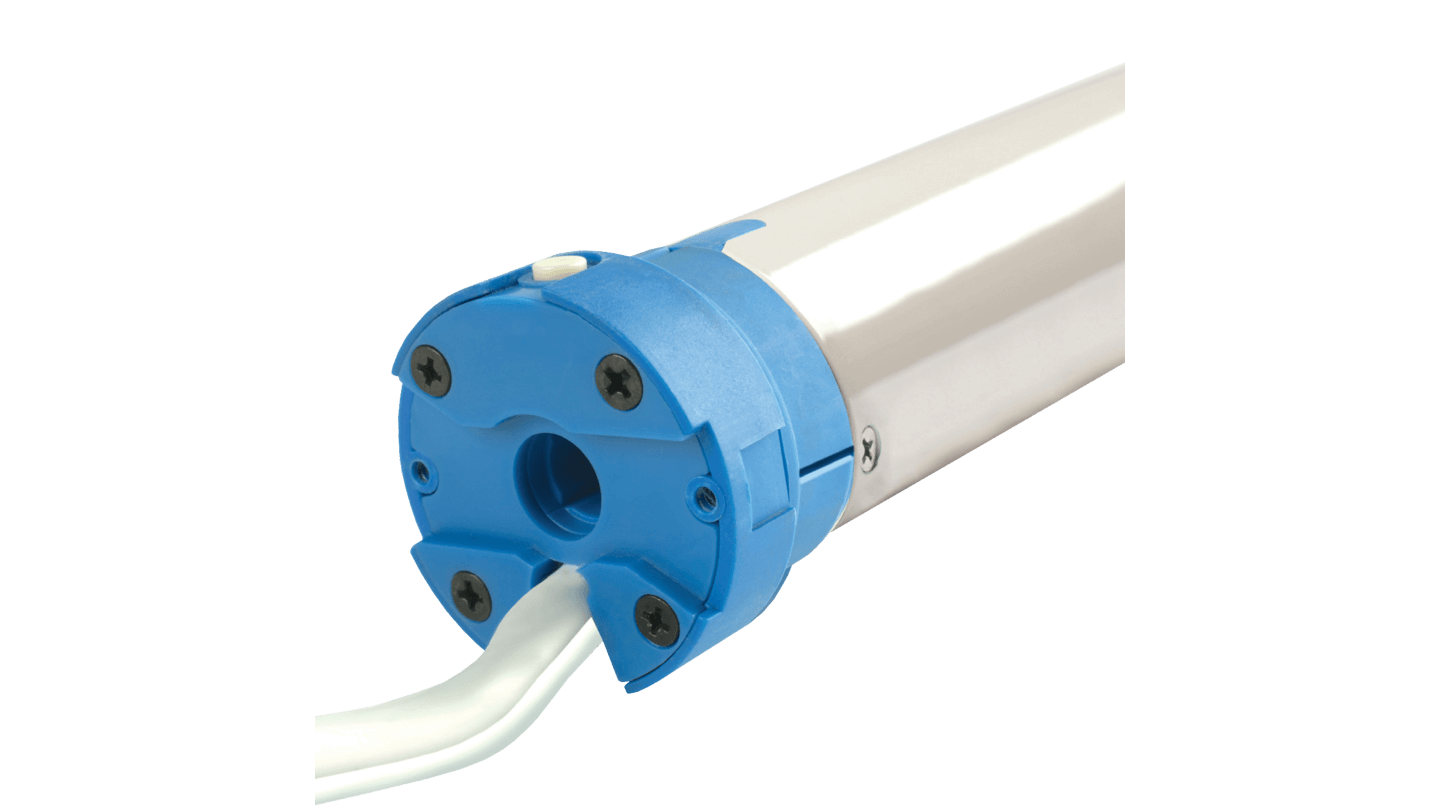

KLIMT SH5 – Ø 45: Electronic tubular motor designed for shutters
Operates on 230 V AC – 50 Hz power supply
Features electronic limit switch for precise control
Equipped with a 433.92 MHz radio receiver for wireless control
Includes obstruction detectors in both directions for added safety
Universal head for easy application on any anchoring plate
Adjustable mid-point for partial opening customization
Cabled button can be linked to the step-step command for convenient operation
Automatic inversion of travel direction in case of obstruction during descent
Offers full automatic setting for simplified use

Category: Blinds And Awnings Product ID: 5531

Description
Reviews (0)

Description

CODE	001Y5010A151KLS	001Y5020A151KLS
Torque (Nm)	10 **	20
Rpm speed (turns/min)	15	15
Hoisted weight (Kg)*	18	36
Duration of operation (min)	4	4
Protection rating (IP)	44	44
Absorption (A)	0,48	0,69
Power (W)	113	161
Length (mm) = L1	604	604
Weight (Kg)	2,21	2,29
Package dimensions (mm)	660 x 80 x 80	660 x 80 x 80
Weight of packed motor (Kg)	2,47	2,64
