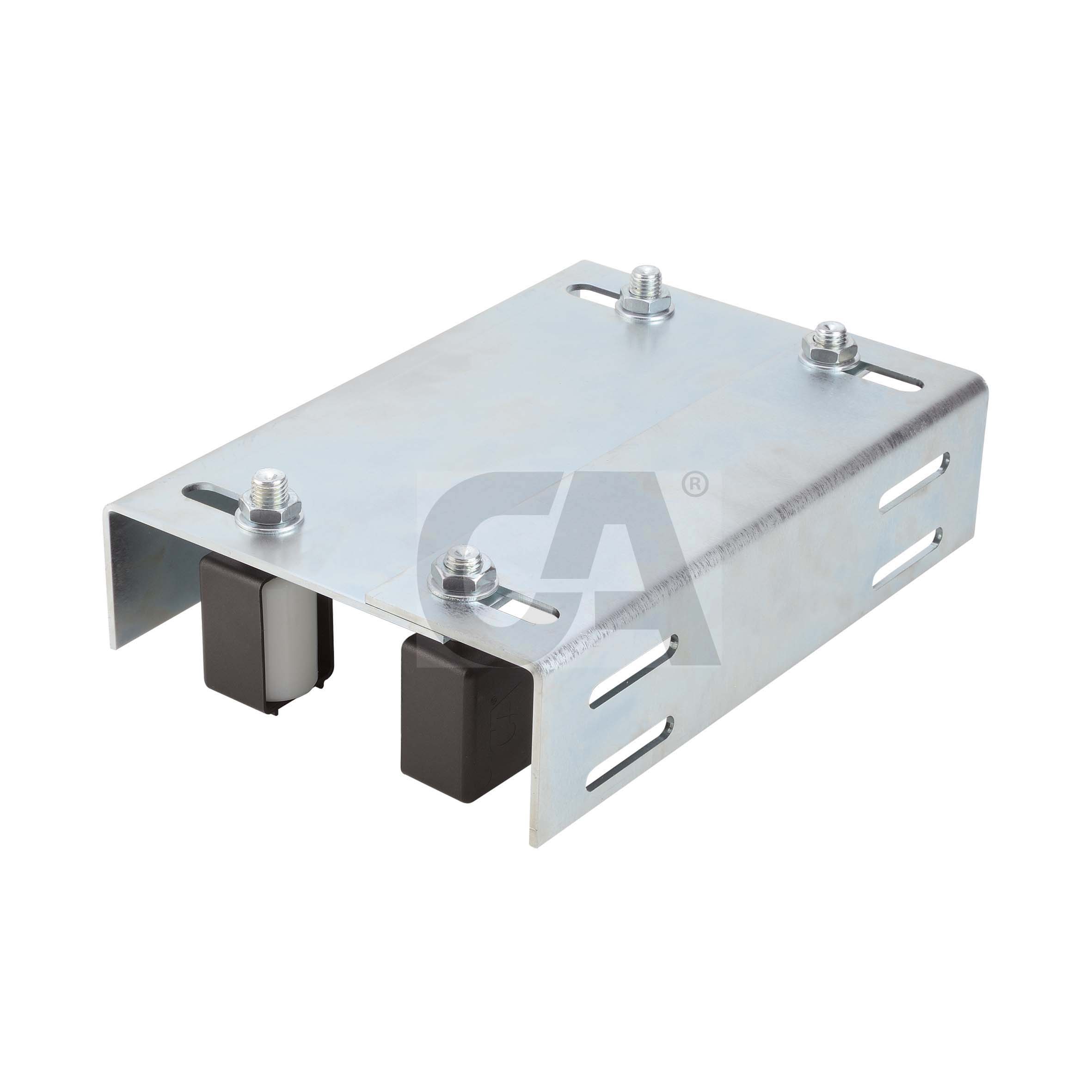

The Adjustable Guide Plate with 4 olives nylon ensures precise guidance and alignment for various applications. Available in different sizes, each variant features a zinc-coated finish for enhanced durability and corrosion resistance. Whether for smaller or larger dimensions, these guide plates facilitate smooth operation and reliable performance in maintaining stability and functionality.
Key Features:
– Designed for double adjustment or regulation with 4 olives nylon
– Zinc-coated finish for durability and corrosion resistance
– Available in different sizes to accommodate various applications:
– Piccola: Ø30×40
– Media: Ø40×45
– Grande: Ø40×60
| A | B | C | E | F | G | H | asole | L | sp | I | M | olive |
|---|
|
code
|
mm.
|
pz/pcs
|
A
|
B
|
C
|
E
|
F
|
G
|
H
|
asole
|
L
|
sp
|
I
|
M
|
olive
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.G | GRANDE | 2 | 49-91 | 110-195 | 200-243 | 81 | 74 | 157 | 26 | 11×63 | 350 | 4 | 285 | M16 | Ø40×60 |
| 462.M | MEDIA | 4 | 47-90 | 89-151 | 149-197 | 76 | 54 | 91 | 21 | 11×54 | 220 | 3 | 155 | M16 | Ø40×45 |
| 462.P | PICCOLA | 6 | 43-86 | 93-156 | 149-197 | 76 | 54 | 91 | 21 | 11×54 | 220 | 3 | 155 | M14 | Ø30×40 |
